Silverlight DataGrid Column Width Behavior

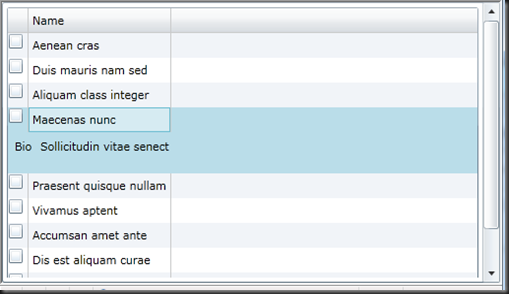

I was having a problem with the content in my DataGrid.RowDetailsTemplate being truncated based off of the width of my columns instead of the width of the DataGrid.

Here is some xaml to produce this behavior.

<Grid x:Name="LayoutRoot" Background="White" DataContext="{Binding Source={StaticResource SampleDataSource}}">
<ScrollViewer x:Name="scv" HorizontalScrollBarVisibility="Auto" HorizontalAlignment="Stretch" >
<sdk:DataGrid x:Name="dgItems" HorizontalAlignment="Stretch" AutoGenerateColumns="False" ItemsSource="{Binding Collection}">
<sdk:DataGrid.RowDetailsTemplate>
<DataTemplate>
<Grid HorizontalAlignment="Stretch" Margin="2" MinHeight="40">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto"/>
<ColumnDefinition Width="Auto"/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<TextBlock HorizontalAlignment="Left" Grid.Row="0" Text="Bio" Margin="4"/>
<TextBlock HorizontalAlignment="Left" Grid.Row="0" Grid.Column="1" Margin="4" Text="{Binding Bio}" TextWrapping="Wrap" />
</Grid>
</DataTemplate>
</sdk:DataGrid.RowDetailsTemplate>
<sdk:DataGrid.Columns>
<sdk:DataGridTemplateColumn>
<sdk:DataGridTemplateColumn.CellTemplate>
<DataTemplate>
<CheckBox />
</DataTemplate>
</sdk:DataGridTemplateColumn.CellTemplate>
</sdk:DataGridTemplateColumn>

<sdk:DataGridTextColumn Binding="{Binding Name}" Header="Name" />
<!--
<sdk:DataGridTemplateColumn>
<sdk:DataGridTemplateColumn.CellTemplate>
<DataTemplate>
</DataTemplate>
</sdk:DataGridTemplateColumn.CellTemplate>
</sdk:DataGridTemplateColumn>
-->
</sdk:DataGrid.Columns>
</sdk:DataGrid>
</ScrollViewer>
</Grid>

If I add a dummy template column, and the Datagrid width behavior, it now looks like:




And here is the xaml with the extra column and the Datagrid Column Width Trigger.

<Grid x:Name="LayoutRoot" Background="White" DataContext="{Binding Source={StaticResource SampleDataSource}}">
        <ScrollViewer x:Name="scv" HorizontalScrollBarVisibility="Auto" HorizontalAlignment="Stretch" >
            <sdk:DataGrid x:Name="dgItems" HorizontalAlignment="Stretch" AutoGenerateColumns="False" ItemsSource="{Binding Collection}">
            <sdk:DataGrid.RowDetailsTemplate>
                <DataTemplate>
                    <Grid Margin="2" MinHeight="40" Width="Auto" HorizontalAlignment="Stretch">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="Auto"/>
                            <ColumnDefinition Width="Auto"/>
                        </Grid.ColumnDefinitions>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                        </Grid.RowDefinitions>
                        <TextBlock HorizontalAlignment="Left" Grid.Row="0" Text="Bio" Margin="4"/>
                        <TextBlock HorizontalAlignment="Stretch" Width="Auto" Grid.Row="0" Grid.Column="1" Margin="4" Text="{Binding Bio}" TextWrapping="Wrap" />
                    </Grid>
                </DataTemplate>
            </sdk:DataGrid.RowDetailsTemplate>
            <sdk:DataGrid.Columns>
                <sdk:DataGridTemplateColumn>
                    <sdk:DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <CheckBox />
                        </DataTemplate>
                    </sdk:DataGridTemplateColumn.CellTemplate>
                </sdk:DataGridTemplateColumn>

                <sdk:DataGridTextColumn Binding="{Binding Name}" Header="Name" />

                <sdk:DataGridTemplateColumn>
                    <sdk:DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                        </DataTemplate>
                    </sdk:DataGridTemplateColumn.CellTemplate>
                </sdk:DataGridTemplateColumn>

            </sdk:DataGrid.Columns>
             <i:Interaction.Triggers>
             <i:EventTrigger EventName="Loaded">
             <this:DataGridSpreadColumnsAction/>
             </i:EventTrigger>
             <i:EventTrigger EventName="SizeChanged">
             <this:DataGridSpreadColumnsAction/>
             </i:EventTrigger>
             </i:Interaction.Triggers>
        </sdk:DataGrid>
        </ScrollViewer>
    </Grid>

The code for the DataGridSpreadColumnsAction is.

    using System;
    using System.Windows;
    using System.Windows.Controls;
    using System.Windows.Interactivity;

    public class DataGridSpreadColumnsAction : TriggerAction<DataGrid>
    {
        public static DependencyProperty ColumnSpreadProperty = DependencyProperty.Register("ColumnSpread", typeof(DataGridColumnSpread), typeof(DataGridSpreadColumnsAction), new PropertyMetadata(DataGridColumnSpread.LastColumn));

        // Space available to fill ( -18 Standard vScrollbar)
        private const int ScrollbarWidth = 18;

        public enum DataGridColumnSpread
        {
            LastColumn,
            Evenly
        }

        public DataGridColumnSpread ColumnSpread
        {
            get { return (DataGridColumnSpread)GetValue(DataGridSpreadColumnsAction.ColumnSpreadProperty); }
            set { SetValue(DataGridSpreadColumnsAction.ColumnSpreadProperty, value); }
        }

        protected override void Invoke(object parameter)
        {
            DataGrid associatedDataGrid = this.AssociatedObject as DataGrid;

            if (associatedDataGrid != null
                && associatedDataGrid.RenderSize.Width != 0
                && associatedDataGrid.Columns.Count > 0)
            {
                switch (this.ColumnSpread)
                {
                    case DataGridColumnSpread.LastColumn:
                        DistributeToLastColumn(associatedDataGrid);
                        break;
                    case DataGridColumnSpread.Evenly:
                        DistributeEvenly(associatedDataGrid);
                        break;
                    default:
                        DistributeToLastColumn(associatedDataGrid);
                        break;
                }
            }
        }

        private static void DistributeToLastColumn(DataGrid dataGrid)
        {
            double sumOfColumnWidths = SumColumnWidths(dataGrid);

            double space_available = (dataGrid.RenderSize.Width - ScrollbarWidth) - sumOfColumnWidths;
            if (Math.Abs(space_available) > 1)
            {
                var column = dataGrid.Columns[dataGrid.Columns.Count - 1];
                column.Width = new DataGridLength(column.ActualWidth + space_available);
            }
        }

        private static void DistributeEvenly(DataGrid dataGrid)
        {
            double sumOfColumnWidths = SumColumnWidths(dataGrid);
            double space_available = (dataGrid.RenderSize.Width - ScrollbarWidth) - sumOfColumnWidths;

            if (Math.Abs(space_available / dataGrid.Columns.Count) >= 1)
            {
                foreach (DataGridColumn column in dataGrid.Columns)
                {
                    column.Width = new DataGridLength(column.ActualWidth + (space_available / dataGrid.Columns.Count));
                }
            }
        }

        private static double SumColumnWidths(DataGrid dataGrid)
        {
            double sumColumnWidths = 0.0;

            foreach (DataGridColumn column in dataGrid.Columns)
            {
                sumColumnWidths += column.ActualWidth;
            }

            return sumColumnWidths;
        }
    }

I hope this helps somone who was having issues with their RowDetailsTemplate being truncated.

-Austin
